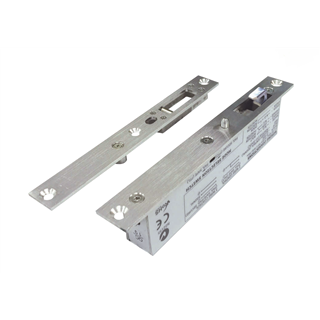

FSH HL1260 ECOLOCK Hook Lock for Sliding Doors

Stock Code:
HL1260

Downloads

Details

  • Unit of Measure:
    Indent

Description

The FSH HL1260 is a high torque motor driven hook lock for a sliding door. It can be installed vertically in the door frame (lock style) with the strike plate mounted on the edge of the door.

Alternatively, there is a surface mount box for the strike plate and/or lock for a sliding door. It can also be mounted with the surface mount box on the door header with the face plate on the face of a swing door.

The HL1260 is considered a “Green Product” as it consumes an in-rush current of 290ma@12Vdc only during locking and unlocking action (active Mode), then in the locked or unlocked state (Sleep-Mode), the Drop Bolt consumes current less than 15ma@12Vdc.
Features

  • Motorised locking device
  • Durability tested to 400,000 cycles
  • Multi voltage from 12 to 30Vdc
  • Sleep-Mode current less than 15ma@12Vdc
  • Fully monitored including reed switch for door position
  • Up to 1000kg holding strength
