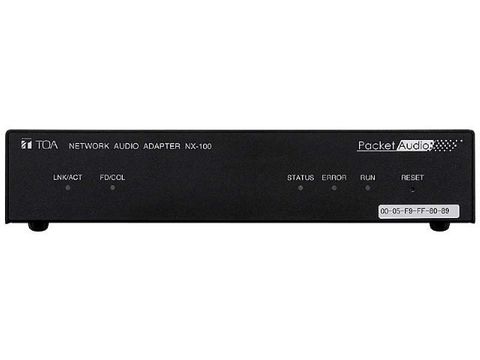

TOA Network Audio Adaptor (No RS232)

Stock Code:
NX100SP

Downloads

Details

  • Unit of Measure:
    Indent

Description

The NX-100S Network Audio Adapter can transmit high-quality audio signals and such control data as control input data over IP networks, such as LAN or Internet, in real time. It is especially useful when transmitting audio signals to remote locations, as Internet use keeps running costs lower than the use of dedicated lines. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard rack (1 unit size).

  • Power Source - 24v DC or AD-246 Adaptor (optional)
  • Power Consumption - 200mA
  • Freq Response - 50Hz - 14kHZ (when sampling is 32 kHz)
  • Distortion - 0.3% or less
  • Network - 10BASE-T/100BASE-TX, Auto Negotiation
  • Dimensions - 210mm x 44.7mm x 188mm (WxHxD)
  • Weight - 1.1kg
  • Mounting Brackets - MB-15B-K (single NX-100) MB-15B-J (two NX-100)
