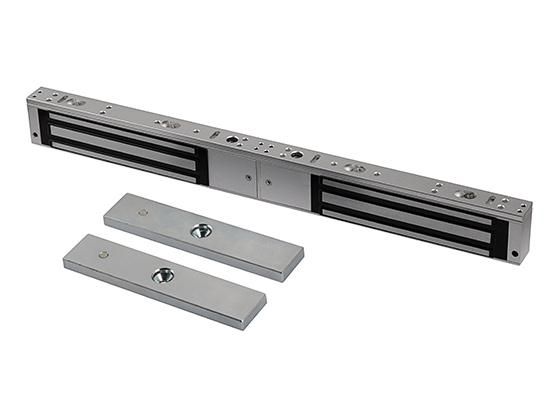

Hikvision Slimline Double Mag 300KG - LSS
Stock Code:
DS-K4H250D
Downloads
Details
-
Unit of Measure:Each
Description
| General Specification | |
|---|---|
| Power Supply: | 12VDC /24VDC |
| Working Current: | 12V/500mA×2 24V/250mA×2 |
| Suitable Doors: | Wooden Door, Glass Door, Metal Door, Fireproof Door |
| Dimension of Lock Body: | 480×49×25.5mm (18.9×1.93×1.00") |
| Dimension of Armature Plate: | 180×38×11mm (7.1×1.5×0.4") |
| Maximum Thrust: | 300kg×2 Linear Thrust |
| Signal Output: | Dry Contact Signal Output, Support Maximum Power Rate of 3A, NO Output While Locking and NC Output While Unlocking |
| LED Indicator: | Red (Door is Unlocked) Green (Door is Locked) |
| Shell: | Hard Anodizing Electroplating Operated |
| Lock Body: | Eco-friendly Zinc Electroplating Operated |
| Armature Plate: | Eco-friendly Zinc Electroplating Operated |
| Working Temperature : | -10° C to 55° C (14° F to 131° F) |
| Working Humidity: | 0 to 95% (relative humidity) |
| Weight: | 4.2kg(9.3lb) |
