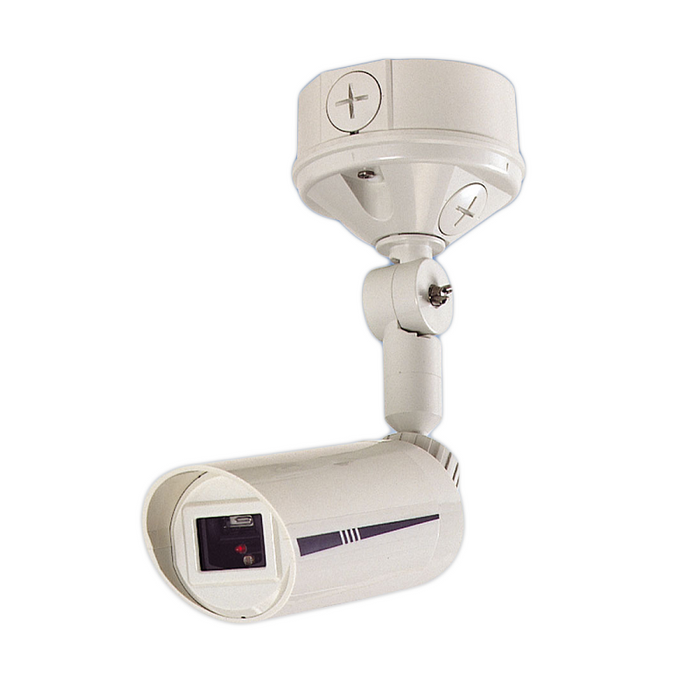

Takex Flame Detector Outdoor/Indoor

Stock Code:
FS-5000

Details

  • Unit of Measure:
    Indent

Description

Model Number: FS-5000

TAKEX 33' Ultraviolet Sensor, Outdoor, Weather Resistant, Relay Output N/O- N/C, Power 10-30VDC

The FS-Series flame sensors are designed to detect ultraviolet rays in flames. With a detection range of approximately 33' they either activate a built-in alarm sounder or are connected to a remote panel annunciating device.

  • Detection System - Ultra Violet Ray Detection
  • Wavelength - 183 to 260nm
  • Response Time - Switch Selectable: (0.2sec.) - (1sec.) - (6sec.) - (30sec.)
  • Alarm Output
    • Dry Relay Contact
    • N/O - C - N/C
    • Reset: Approx. 2 secs.
  • Contact Rating - 30VAC/DC 0.5A Max
  • Alarm Led Red - On at Alarm
  • Supply Power - 10 to 30VDC ( non polarity)
  • Current Consumption - 35mA Max.
  • Ambient Temperature - -4?F to + 122?F (-20?C to + 50?C)
  • Installation - Outdoor - Indoor Ceiling or Wall Mount
  • Wiring - Terminals on the Base
  • Weight - 19.3oz. (550g)
  • External Appearance
    • Sensor: PC Resin (white)
    • Adjustment: ABS Resin (white)
