Ness Stand Alone Radio RX Only , Single Ch RX / SCR

Stock Code:
106-179

Details

  • Unit of Measure:
    Each

Description

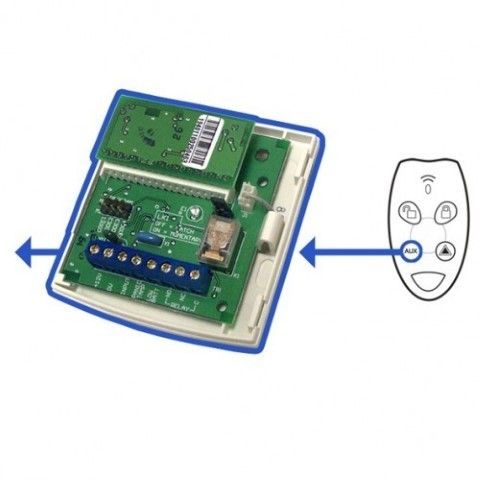

106-179 SCR PLUS FLEXIBLE RECEIVER - NESS

Works with Virtually Any model Alarm System.

The Ness SCR+ Flexible Standalone Receiver is a unique high performance radio receiver designed to operate with anyNess proprietary radio transmitting device including Ness Radio Keys, Radio Key pendants, Radio Reed switches, Radio Smoke Detectors and Radio PIRs.

The SCR+ is ideal for connecting to alarm panels which donot provide a wireless facility and can be used for connecting wireless devices for zone alarms, Panic buttons or Radio Keys for Arming and Disarming the Panel. The Inhibit input gives the receiver the unique ability to identify the Armed/Disarmed status of an alarm panel.

When used with a Ness radio key it allows the receiver toalways correctly Arm or Disarm the Panel. The SCR+ is also ideally suited for applications that require a remotely switched relay output for low voltage switching applicationse.g. garage door opening.

The Relay output can be selected to be Pulsing or Latchedfor alarm signals or a Pulsing output for Panic/Tamper, Aux or Low Batt signals. The SCR+ will accept up to four individual Radio Keys and Panic Buttons or up to four alarm transmitting devices (Radio Reed Switches or PIRs)



  • Works with 100-067 RK4 Radio Key 106-167 RK4B radio Key 106-299 RK4P Prox Radio Key
  • Receives ARM / Disarm / PANIC / AUX / Low Batt channels from Ness Radio Keys or Radio PIRs / Radio Reeds.
  • Supports up to four transmitters.
  • Simple ?Learn Mode? programming for radio devices.
  • 1 x Relay output with selectable Toggle/ Pulse, selectable
  • 4 x Open Collector outputs for Panic/ Tamper, On/Alarm, Aux, Low Battery
  • Compatible with any control panel or equipment.
