TOA 100v Class D Amp 4 x 250W
Stock Code:
DA250FH
Downloads
Details
-
Unit of Measure:Indent
Description

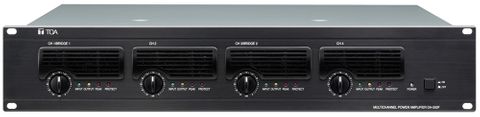

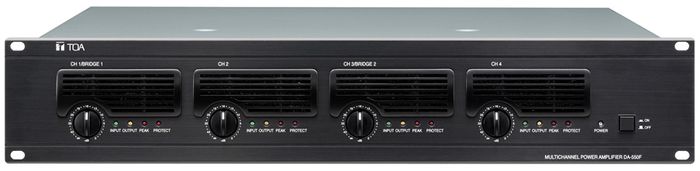

The DA-250FH is a 4-Channel Digital Power Amplifier designed for 100 V line high-impedance distribution and features lightweight, compact, high power output, and high efficiency. It delivers 250 W × 4 channels (40 Ω output) using a switching power supply. Each channel is equipped with an independent power section. It can be electrically isolated from the high-impedance speaker system by attaching the MT-251H Output Transformer (optional). It can be mounted in an EIA Standard equipment rack (1 unit size).
- Power Source - 220- 240v AC
- Amplification System - Class D
- Power Consumption - 200w
- Rated Output - 250w x 4 (100v)
- Freq Response - 50Hz - 20kHz
- Dimensions - 482mm x 44m x 401.8mm (WxHxD)
- Weight - 6.8kg
