Aiphone LE 10 Call Master - All Call
Stock Code:
LEF-10S
Details
-
Unit of Measure:Indent
Description

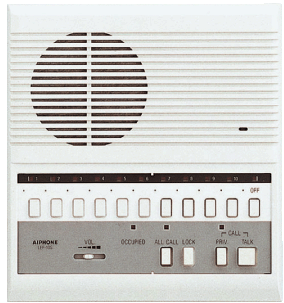

The LEF-10S is a selective call open voice system master station with the capacity of up to 11 total stations. Any combination of subs and masters can be used up to its maximum capacity. The LEF-10S has the ability to place and all call to all stations in the system (requires BG-10C).
FEATURES
- Provides communication and call-in
- Stainless steel cover
- Weather and vandal resistant
- Hands-free communication when master station answers
SPECS
- Type of communication - Hands-free communication
- Mounting - Mounts flush in a 2-gang back box or directly on wall with SBX-2G/A
- Wire Type - 3-cond., overall shield - use Aiphone #822203(22AWG) or #821803(18AWG)
- Wire Distance - Door Station to farthest Master Station: 650'(22AWG) 1,600(18AWG)
- Protection Rating - IP33
- Temperature Rating - 14° ~ 140°F (-10°~60°C)
- Dimensions - 4-1/2" H x 4-9/16" W x 2" D
