Aiphone JF2 Video Master Station
Downloads
Details
-
Unit of Measure:Indent
Description

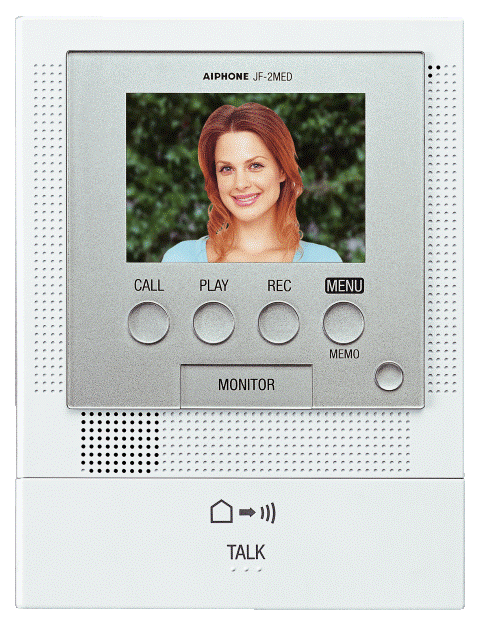

The JF-2MED is the master monitor for the JF series video entry security system. This system will support 2 video doors stations and 3 inside colour monitor stations. The JF-2MED has a built in picture memory feature that can be set to record automatically when the visitor calls, or the record can be done manually by the user. Up to 50 images can be recorded at a rate of 1 frame per second and 8 frames per image (400 total frames). Up to 10 images (80 frames) can be saved and protected from automatic overwriting.
The voice memo feature allows the user to record a short message for someone or a reminder for themselves. Up to 3 voice memos for internal use can be recorded, up to 15 seconds per memo. An outgoing message can be pre-recorded to be sent to the door station for instances when you can’t, or don’t want to use your voice to answer a visitor. Up to two pre-recorded messages can be saved. These can be played after identifying a visitor and must be manually selected by the user. This is not an automatic message sent when the visitor calls.
FEATURES
- Video identification and monitoring with 3-1/2″ screen
- Hands-free communication
- Door release
- All Call between inside stations
- Simple 2-cond. wiring
- Surface mounts to wall on 1-gang box or ring
- Internal Picture Memory
- Internal voice memo and outgoing message can be recorded for playback
- 5 display languages (English, French, German, Spanish, or Dutch)
- External sensor input
SPECS
- Communication - Hands-free (VOX) or push-to-talk (simplex)
- Video Display - 3-1/2" LCD screen
- Picture Memory - Record max. 50 calls (8 images per call) with up to 10 calls protected from overwriting
- Door Release - N/O dry contact, 24V AC/DC 500mA (use RY-18L for larger contact rating or RY-3DL for 2 doors)
- Mounting - Surface mount directly to wall or desk mount using MCW-S/A
- Wire type - Door station to Master Station: 2-cond., mid cap, solid non-shielded - use Aiphone #871802
- Master Station to Sub Master Station: 4-cond., mid cap, solid non shielded - use Aiphone #871804
- Wire Distance- Door Station to Master Station: 165' (22AWG) 330' (18AWG)
- Master Station to farthest Sub Master Station: 165' (22AWG) 330' (18AWG)
- Power Supply to Master Station: 16' (22AWG) 33' (18AWG))
