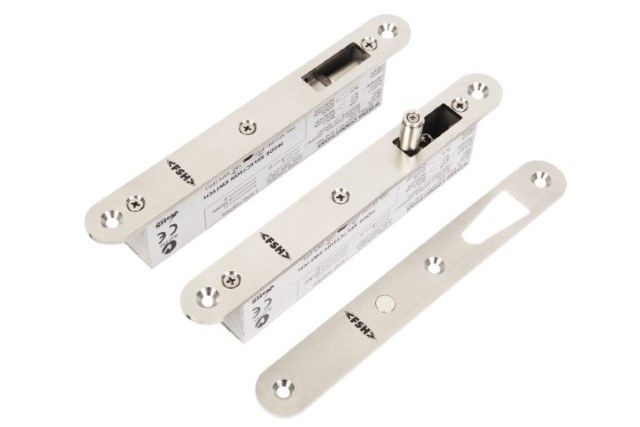

FSH VE1260R ECOLOCK Pre-Load Bolt Lock
Downloads
Details
-
Unit of Measure:Each
Description
The patented EcoLock VE1260 is a high torque motor driven Drop Bolt with up to 35kg pre-load/side load tolerance. It can be installed vertically in the door frame (lock style) or horizontally in the frame header and has a symmetric dead-bolt mechanism to allow to be used on 180° degree swing through doors.
The VE1260 is considered a “Green Product” as it consumes an inrush current of 290mA @ 12VDC only during locking and unlocking action (Active Mode), then in the locked or unlocked state (Sleep-Mode), the Drop Bolt consumes current less than15mA @ 12VDC.
A series of additional Strike Plates allow for door misalignment of up to +12mm and a retrofit version of the FSH Eco Lock is available to suit the PADDE/TRIMEC ES8000 drop bolt footprint.
An optional LED red/green indicator unit is available.
| Holding strength | Up to 1000kg |
| Voltage/Current |
Multi voltage 12-30VDC Active Mode: Locking/Unlocking cycle current is 0.29A to 0.85A depending on the side load More side load: more current. See preload vs. current graph. Sleep Mode: Afterlocking/unlocking the current drops down to -0.015A (15mA) |
