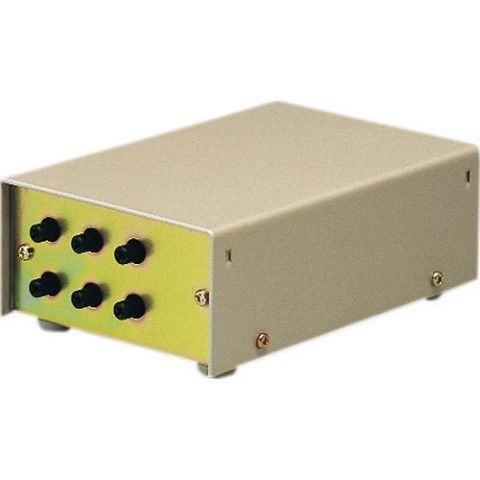

Aiphone PD1 Zone Paging Module

Stock Code:
PD-1

Details

  • Unit of Measure:
    Each

Description


Paging Adaptor for TD-H/B Series

FEATURES
Provides paging from TD-H handsets to an overhead PA system
Single or multi-zones
Music source connection, automatically mutes when paging

SPECS
Output - 5KΩ, 1.5V max.
Amp. Input - AUX or PHONO 100K~500KΩ, 0.12V~0.5V
Music Input - 17KΩ, 0.3V, 1KHz for full output
Tuner Output - Audio output range: 100mV~1.2V, 10KΩ or less
Talkback Gain - 40dB, 1KHz at max. volume
Environmental Noise - Less than 80dB (phono)
Wire Type - Adaptor to Amplifier: 2-cond., overall shield - use Aiphone #822202
Adaptor to Master Station: 3-cond.,overall shield - use Aiphone #822203
